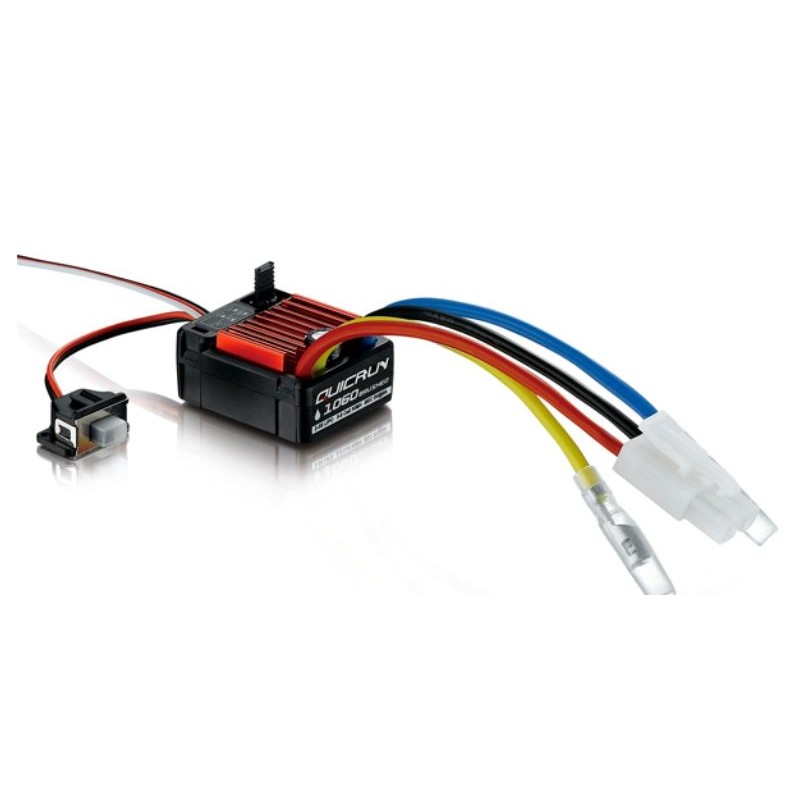

Hobbywing REGOLATORE CAR SPAZZOLE 60Ah WATERPROOF QUICRUN 1060 cod.GPED30120201

Descrizione

REGOLATORE CAR SPAZZOLE 60Ah

WATERPROOF QUICRUN 1060

1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank with BRUSHED motor

1 Features

1.1 Water-proof and dust-proof, suitable for all-weather condition races.
1.2 Small size with built-in capacitor module.
1.3 Three running modes: Fwd/Br, Fwd/Rev/Br and Fwd/Rev, fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
1.4 Great current endurance capability.
1.5 Great built-in BEC output capacity.
1.6 Automatic throttle range calibration, easy to use.
1.7 Easy to set the ESC parameters with jumpers.
1.8 Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.

2 Specifications

Model

Wp-1625-BRUSHED

Wp-1060-BRUSHED

WP-860-DUAL-BRUSHED

Fwd. Cont. / Peak Current
Rev. Cont. / Peak Current

25A/100A

25A/100A

60A/360A

30A/180A

60A/360A

30A/180A

Voltage Range

2-3S Lipo or 5-9 NiMH

2-4S Lipo or 5-12 NiMH

Cars Applicable

1/18 &1/16: Touring Car, Buggy, Monster, Truggy

1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank

1/8: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank

Motor Limit *

2S Lipo or 6 NiMH

280?370 or 380 Size Motor
RPM<30000 @7.2V

540 or 550 Size Motor: =12T
Or RPM<30000 @7.2V

540, 550, 775 Size Motor: =12T
Or RPM<30000 @7.2V

3S Lipo or 9 NiMH

280?370 or 380 Size Motor
RPM<20000 @7.2V

540 or 550 Size Motor: =18T
Or RPM< 20000 @7.2V

540, 550, 775 Size Motor: =18T
Or RPM<20000 @7.2V

4S Lipo or 12 NiMH

Not Available

540, 550, 775 Size Motor: =24T
Or RPM<15000 @7.2V

Resistance

Fwd 0.003O, Rev 0.003O

Fwd 0.001O, Rev 0.002O

Fwd 0.001O, Rev 0.002O

BEC Output

1A/5V (Linear Mode)

2A/5V (Linear Mode)

3A/5V (Switch Mode)

PWM Frequency

1KHz

Dimension / Weight

34*24*14 / 23.5g

36.5*32*18 / 39g

46.5*34*28.5 / Not Available

Cooling Fan

Without cooling fan

Cooling fan works with 2-3S Lipo

Running Modes

Forward/Reverse/Brake

Forward/Reverse/Brake, Forward/Brake, Forward/Reverse

*Note: WP-860-DUAL-BRUSHED has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turns of the motors need to be increased.
